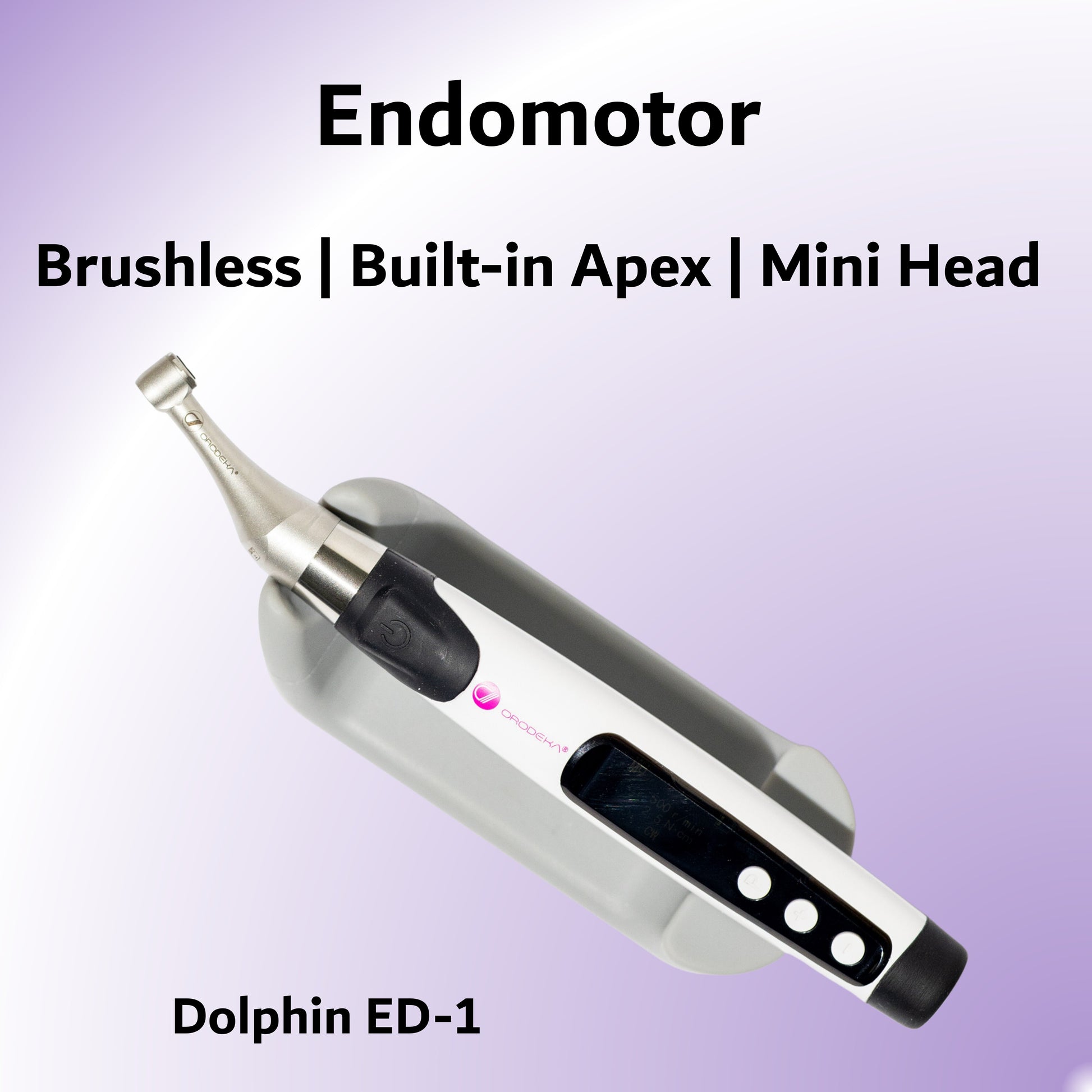

Endomotor - Dolphin ED-1

Key Specifications for Marketplace

• Product Name: Endodontic Motor
• Model: Dolphin-ED1
• Manufacturer: Jining Orodeka Medical Equipment Co., Ltd.
• Power Adapter: Input 100V-240V, 50Hz/60Hz, 0.4A Max; Output 5V 1A
• Lithium Battery: 3.6V, 950mAh (5VA input power)
• Speed Range: 100–1500 rpm
• Torque Range: 0.4–5.0 Ncm
• Operating Modes: CW (clockwise), CCW (counterclockwise), REC (reciprocating), working length measurement
• Contra-angle: 360° rotation
• Equipment Safety Classification: Type B applied part, Class II when charging, IPX0 general equipment

Intended Use: Dental root canal preparation and length measurement

Accessories: Motor handpiece, contra-angle, measuring wire, file clip, lip hook, touch probe, handpiece holder, power adapter

Features

• Brushless Motor: Delivers low noise and long service life, providing immediate treatment effectiveness and convenient handling.
• Cordless Integration: Endo motor and apex locator combined for greater workflow efficiency, easily portable for various clinical and hospital environments.
• 360° Contra-angle Rotation: Improves accessibility and visibility during operation.
• Real-time Feedback: Dynamic torque control prevents file separation, promoting patient safety.
• Minimalist Structural Design: No traditional protective sleeves or external file clips required, enabling efficient length measurement and easy operation.
• Customizable Programs: Ten memory programs and four pre-set file programs for fast parameter adjustment by clinicians.
• Intuitive Display: Real-time speed, torque, and root canal length feedback on screen, with visual and auditory alerts for safety.
• Battery Life: Built-in rechargeable lithium battery, supports Type-C charging, and auto-shutdown features for power saving.
